    STARRY Asphalt Road Construction Equipment Asphalt Paving Trucks 6m Distribution Width

    Ask Lasest Price
    Brand Name : STARRY
    Model Number : LQP6
    Certification : CCC/ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units per month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    STARRY Asphalt Road Construction Equipment Asphalt Paving Trucks 6m Distribution Width

    Road construction asphalt equipment asphalt paving truck with 6m Distribution width


    Description:

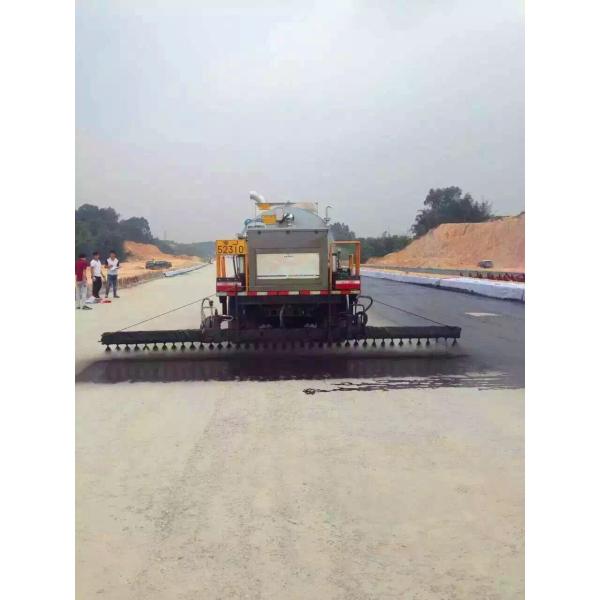

    Asphalt paving truck is a kind of road machine. It's convenient operation and has the function of asphalt insulation, heating, transport, spraying, suction, discharge, etc.We can also add some additional functions for users as required, such as the cab visual monitoring.

    Manual adjust asphalt spraying's volume.Burner heating tube, nozzle operate one controlled multiple pneumatic control through pneumatic cylinder control. No heat conduction oil circulation system, asphalt pipeline and the spray bar heated by hot asphalt recycling.By using the digital to display vehicle speed and asphalt tank pump speed and accurate temperature display. Compressed air cleaning system. Take chassis hydraulic force or auxiliary diesel engine as power


    Packing:

    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.

    Competitive Advantage:


    1. In the cab you can control the spray nozzles, asphalt pump and distributing volume;
    2. Hydraulic drive system, accurate, reliable, safe and noise-free;
    3. Latest fan-shaped nozzles, each nozzle independently controllable, three overlapping design;
    4. Rear manual emergency control system, simultaneous display of asphalt pumping speed and sphalt temperature etc;
    5. Manual adjusting valve switch and asphalt pumping speed and controlling distributing volume precisely at the rear;
    6. Automatic Italian Riello burners;
    7. Honda generator set support heating when parked;
    8. Efficient heat insulated system with heat transfer oil applies to asphalt tank, pump and all the pipes;
    9. Special asphalt pump made of cast steel;


    Technical Specification for Asphalt Paving Truck
    Model
    LQP6
    Distribution capacity(kg/m2)
    0.2-3
    Chassis model
    DFA1122SJ11D6
    Distribution precision(%)
    <2
    Engine model
    YC4E160-42
    Heating method of asphalt
    diesel burner
    Max. Power(kw)
    118
    Asphalt capacity(L)
    6000
    Distribution width(m)
    6
    Average temp. drop(C/h)
    <1.5
    Other

    Asphalt paving truck is a kind of road machine. It's convenient operation and has the function of asphalt insulation, heating, transport, spraying, suction, discharge, etc.

    We can also add some additional functions for users as required, such as the cab visual monitoring.road construction

    Cleaning systemCompressed air cleaning system.
